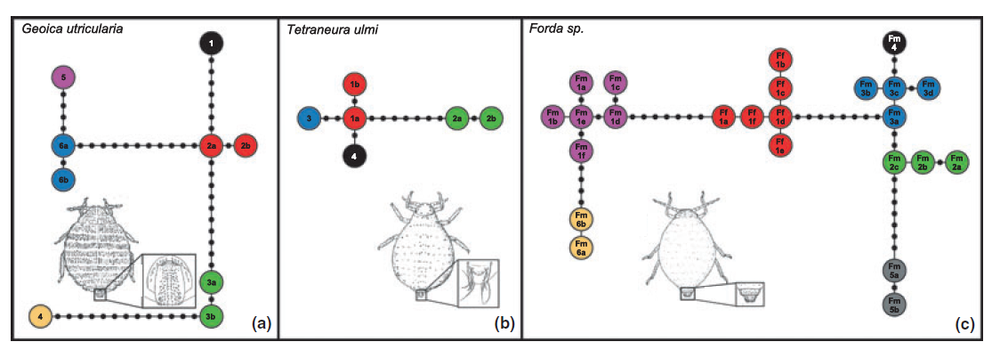

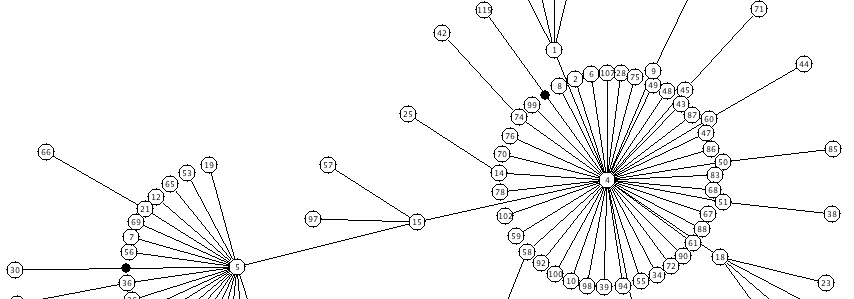

Haplotype Networks and Minimum Spanning Networks are commonly used for representing associations between sequences. HapStar is a tool for viewing both types of networks, and is designed to directly use the output data generated from Arlequin. HapStar is unique in that it automatically lays out the network for optimal visualisation, and provides the option to calculate a Minimum Spanning Network from a list of alternative connections. HapStar provides a user-friendly interface, and publication-ready figures can be exported simply.
HapStar works on Windows, Linux or OSX and requires python to be installed on your computer - which you can find here. Download the current version:
- hapstar-0.7.zip (Windows)
- hapstar-0.7.tar.gz (Linux/OSX)
To run, simply extract the zip or tar archive and double-click on “hapstar.py”. Under OSX operating systems, Control-click and select “Open With” and choose “python launcher”.
- Pre-print form of the paper can be found here.
- For citations, please use: Teacher AGF & Griffiths DJ (2011) HapStar: Automated haplotype network layout and visualisation. Molecular Ecology Resources 11(1): 151-153.
HapStar is released under the GPLv3 licence, Funding: European Union FP7 ERA-NET program, BiodivERsA
Created: 28 Sep 2011 / Updated: 15 Jul 2021
